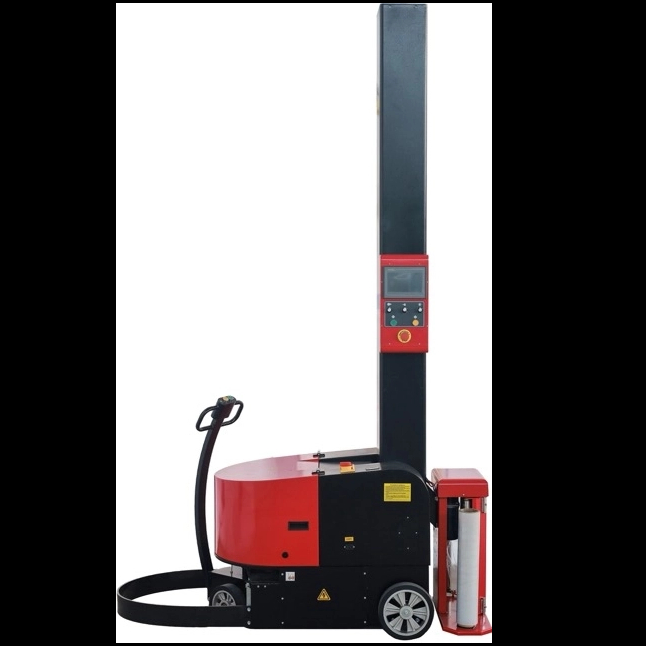

Model | H1100 |
Wrap size(L×W) | (600-∞)mm × (600-∞)mm |
Wrap height(max) | 400-2100mm (2400mm optional) |
Pallet weight request | >50kgs |
Wrap efficiency | 20-40 Pallets/Hour (depending on product size) |
Robot move speed | Max. 60m/min |
Battery capacity | 100AH(12V) 2pcs=24V |
Battery charge time | 8-10H |
Rated work time | 8H |
Film carriage | Pre-stretch film carriage |
Lift system | Lift speed adjustable, 4.5m/min |
Control system | PLC control, wrap layers adjustable(1-9layers) |
Model | H1100 |
Wrap size(L×W) | (600-∞)mm × (600-∞)mm |
Wrap height(max) | 400-2100mm (2400mm optional) |
Pallet weight request | >50kgs |
Wrap efficiency | 20-40 Pallets/Hour (depending on product size) |
Robot move speed | Max. 60m/min |
Battery capacity | 100AH(12V) 2pcs=24V |
Battery charge time | 8-10H |
Rated work time | 8H |
Film carriage | Pre-stretch film carriage |
Lift system | Lift speed adjustable, 4.5m/min |
Control system | PLC control, wrap layers adjustable(1-9layers) |
Machine weight | 320kg |
Lightest product weight | 50kg |
Power | Rotary motor:0.4kw Film carriage:0.35kw Lift system: 0.2kw (all DC motors) |
Voltage | Charge by AC220V 50HZ 1P or customized |
Machine package size | 2800 x 700 x 1300mm (wooden case package) |
Machine weight | 320kg |
Lightest product weight | 50kg |
Power | Rotary motor:0.4kw Film carriage:0.35kw Lift system: 0.2kw (all DC motors) |
Voltage | Charge by AC220V 50HZ 1P or customized |
Machine package size | 2800 x 700 x 1300mm (wooden case package) |
