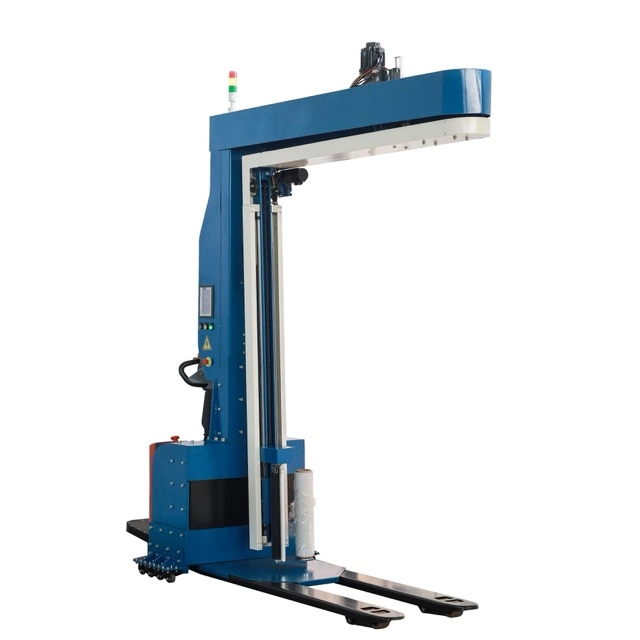

R2100 Forklift Rotary Arm Wrapping Machine

Share to:
sharethis sharing button
The forklift-style wrapping machine integrates the advantages of traditional wrapping machines and forklifts. It efficiently packages goods and, after packaging, swiftly moves pallets to specified locations, eliminating the need for additional forklift operations. This enhances logistics efficiency, saves time, and reduces labor costs. The machine is suitable for various industries, providing stable packaging and rapid handling of goods, with user-friendly operation and consistent, high-quality
Availability:
Quantity:

Model

R1200

Wrap sizeL×W

(600-1100)mm × (600-1100)mm

Wrap height(max)

800-2000mm

Pallet weight

<1500kgs

Wrap efficiency

20Pallets/Hour (depending on product size)

Rotary speed

12RPM

Battery capacity

100AH12V 2pcs=24V

Charge time

8H

Rated work time

10H( keep working)

Film carriage

Brake-stretch film carriage

Lift system

Lift speed adjustable, 4.5m/min

Control system

PLC control, wrap layers adjustable1-9layers


Machine weight

950kg

Power

Forklift: 0.75kw Rotary motor:0.4kw Lift system: 0.2kw (all DC motors)

Input Voltage

Charged by AC220V 50HZ 1P

Package size

2350 x 830 x 3020mm (wooden case package)
