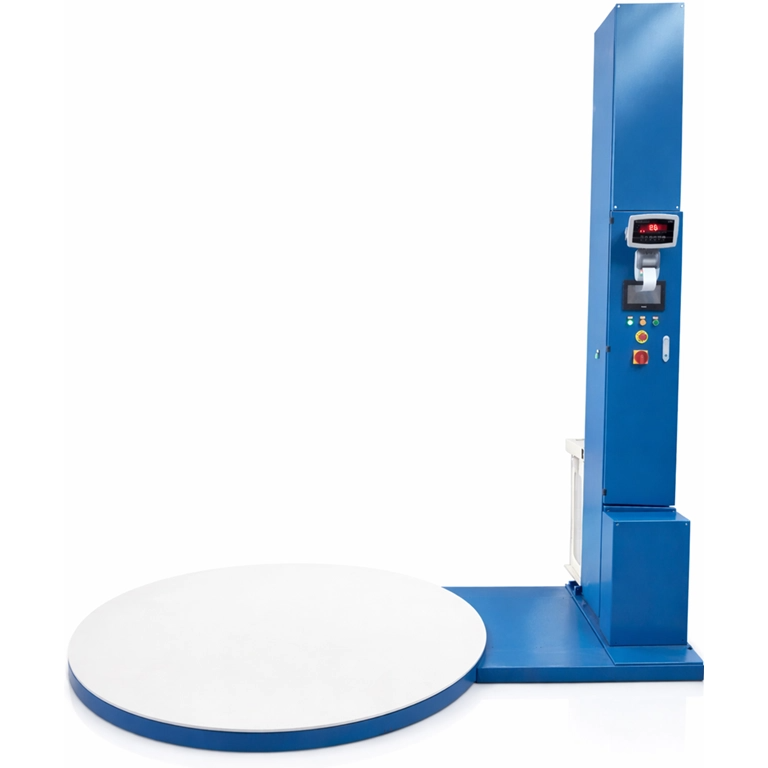

K1100W Pallet Wrapping Machine with Weighing Scales

Share to:
sharethis sharing button
This is a semi-automatic pallet wrapping machine with weighing function, widely used in different industries.

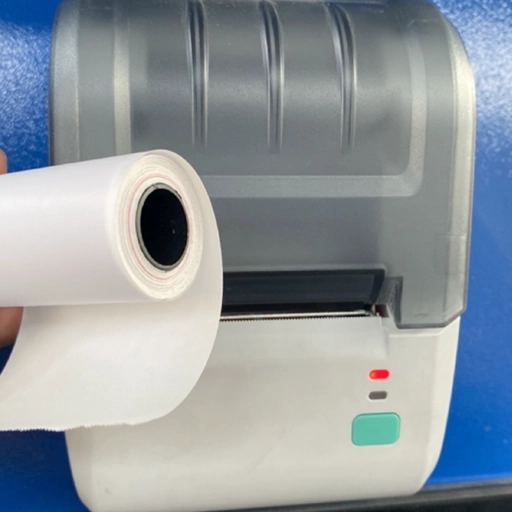

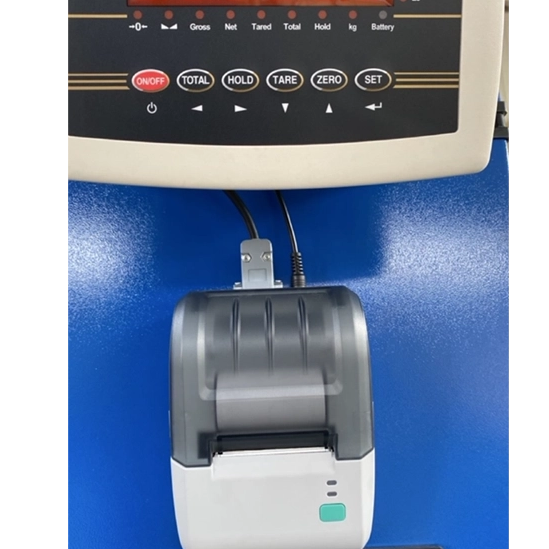

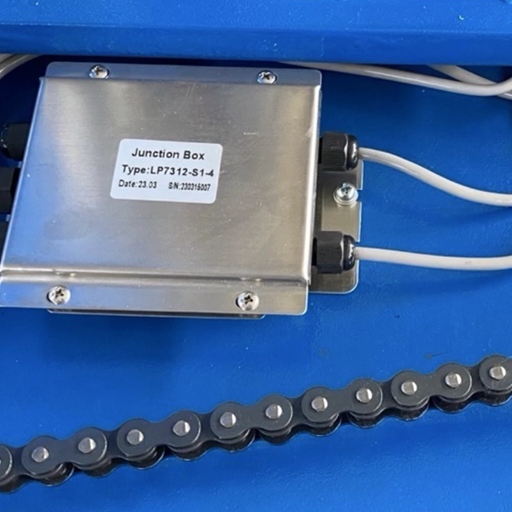

The machine is equipped with four weighing modules, one weight indicator, and one printer, providing a complete solution from weighing to printing.
It delivers accurate weight results and is convenient and practical for daily operation.
  • K1100W

  • Varipac

Availability:
Quantity:
Model K1100W
Wrap size (L X W) (500-1200)mm X (500-1100)mm
Wrap height (max) 2400mm
Turntable diameter 1650mm
Turntable rotary speed 0-12rpm adjustable by inverter
Turntable height 133-150mm(base on different application)
Turntable weight capacity (max) 2000Kg
Film carriage Power pre-stretch system up to 250% with adjustable speed
Wrap efficiency 20-40 Pallets/Hour
Mast(lift system) Film carriage lift speed adjustable by inverter
Control system PLC control
Weighing accuracy adjustable, max. 1/3000


Total weight(max) 470kg
Power/voltage Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ
Machine size     2460mm X 1650mm X 2700mm


Ramp Optional
Top plate Optional
