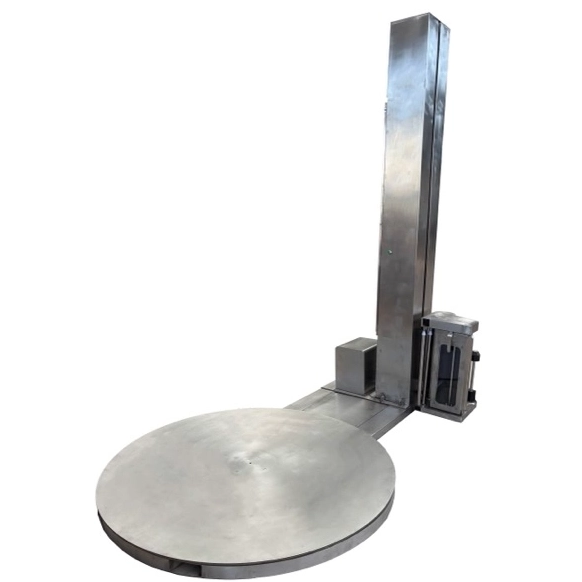

K1100-SS
VARIPAC
| Availability: | |
|---|---|
| Quantity: | |
Model | K1100-SS |
Wrap size (L X W) | (500-1200)mm X (500-1100)mm |
Wrap height (max) | 2400mm |

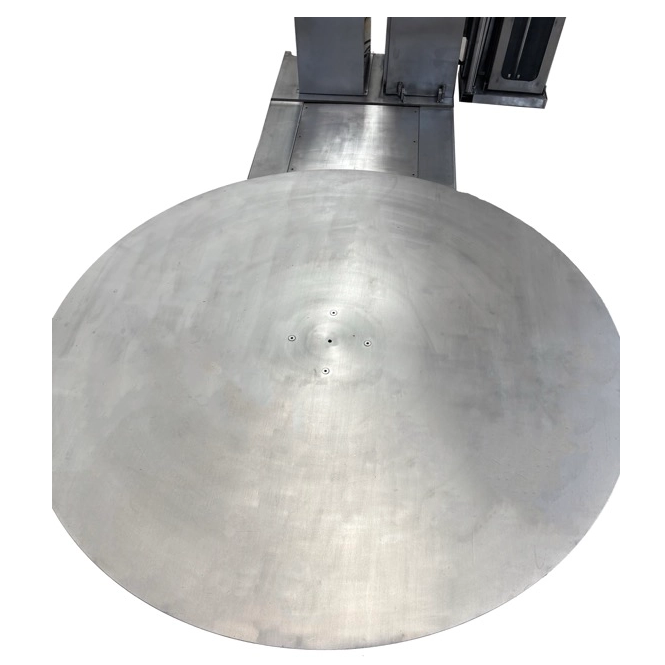

Turntable diameter | 1650mm |
Turntable rotary speed | 0-12rpm adjustable by inverter |
Turntable height | 78mm |
Turntable weight capacity (max) | 2000Kg |
Film carriage | Power pre-stretch system up to 300% with adjustable speed |
Wrap efficiency | 20-40 Pallets/Hour |
Mast(lift system) | Film carriage lift speed adjustable by inverter |
Control system | PLC control |
Total weight(max) | 650kg |
Power/voltage | Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ |
Material | SS304 |
Model | K1100-SS |
Wrap size (L X W) | (500-1200)mm X (500-1100)mm |
Wrap height (max) | 2400mm |
Turntable diameter | 1650mm |
Turntable rotary speed | 0-12rpm adjustable by inverter |
Turntable height | 78mm |
Turntable weight capacity (max) | 2000Kg |
Film carriage | Power pre-stretch system up to 300% with adjustable speed |
Wrap efficiency | 20-40 Pallets/Hour |
Mast(lift system) | Film carriage lift speed adjustable by inverter |
Control system | PLC control |
Total weight(max) | 650kg |
Power/voltage | Turntable:0.75kw Film carriage:0.37kw Mast: 0.37kw/ AC220V 50HZ |
Material | SS304 |
Machine size | 2460mm X 1650mm X 2700mm |
Ramp | Optional |
Top plate | Optional |
Machine size | 2460mm X 1650mm X 2700mm |
Ramp | Optional |
Top plate | Optional |
